DIY_Keyboard

1. Description

DIY-Keyboard is a DIY the Keyboard module which is our company new product. Suit customers can easy DIY. Users can use a maximum of 14 keys, and each key can replace the keyboard any key through setting software.



2. Features

  • Adopt standard HID-USB interface, free driver, supports all operating systems.
  • Supports up to 14 pcs any custom keys, each key can replace the keyboard any key through setting software.
  • Come with the PC software, intuitive interface allows users to facilitate operation; the software supports all Windows systems.


Note: For users who want to use on other operating systems, Firstly you can modify the key value on windows system, then, running this device in any operating system.



3. Electrical parameters

3.1 Voltage: 5V
3.2 current: <10mA
3.3 Operating environment: -20 -85 CelsiusDegree , 0 ~ 90 %RH



4. Installation instructions

Please log in towww.pcsensor.com to download DIY_Keyboard V1.X software, and then install the software.

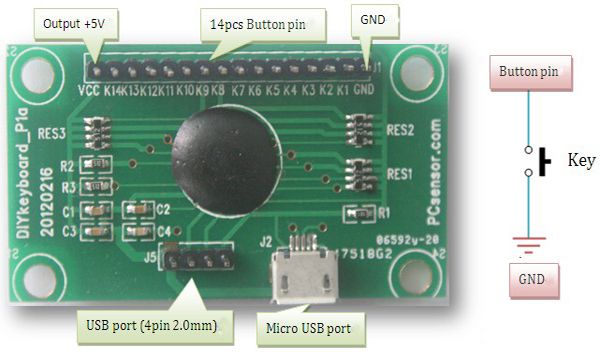

5.Equipment instruction

Weight of DIY-Keyboard : 65g



6. Product photos

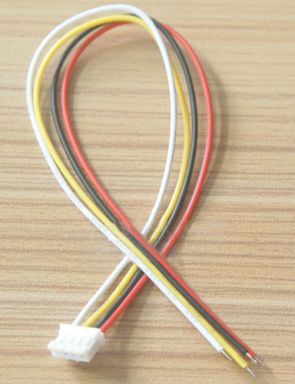

4pin wire

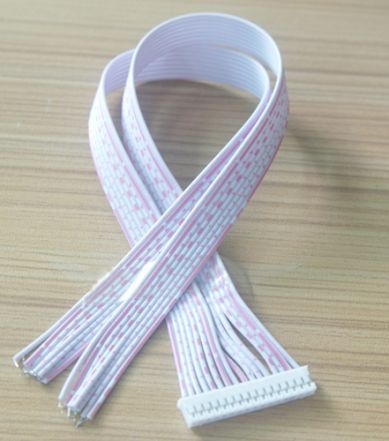

16pin wire

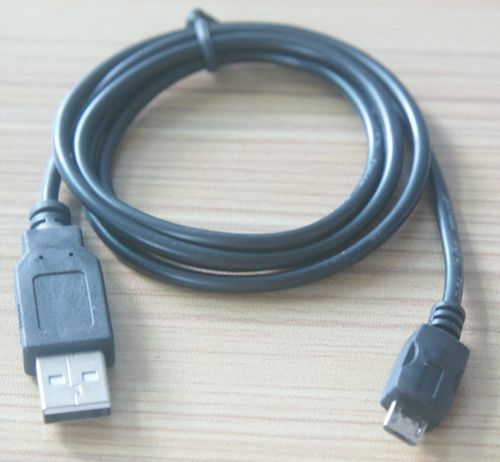

Micro USB cable
