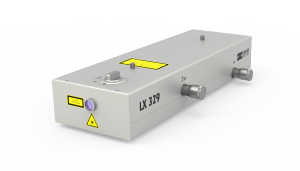

NARROW LINEWIDTH TI:SAPPHIRE LASER

The original optical scheme and design of the LX329 lasers embody the 25-years’ experience of our specialists in the field of designing solid-state tuneable laser systems. These Ti:Sapphire lasers arranged in a compact design uncompromisingly combine a widest tuning range and narrow output linewidth, high pulse energy and excellent beam quality.

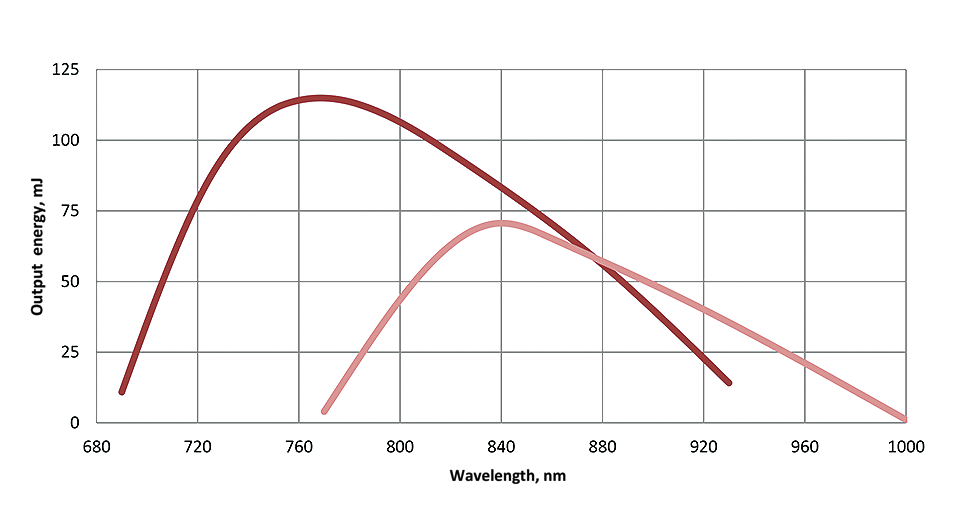

• A WIDEST TUNING RANGE FROM THE IR TO UV

• BUILT-IN SHG

• OUTPUT LINEWIDTH ≤ 0.1 CM-1

• PULSE ENERGY UP TO 110 MJ

• TEM00 BEAM QUALITY

• SMALL FOOT-PRINT

DESCRIPTION

Optical design of these lasers ensures efficient tuneable output at relatively low radiation loads on optical components and active rods. Thanks to this feature the LX329 has increased reliability and demonstrates long-term failure-free operation.

Narrow linewidth master oscillator, supplemented if required with a multi-pass amplifier, provides ideal quality of radiation with Gaussian beam profile and low divergence. This allows to efficiently convert the laser radiation into the UV range and to use it for various nonlinear optical conversions.

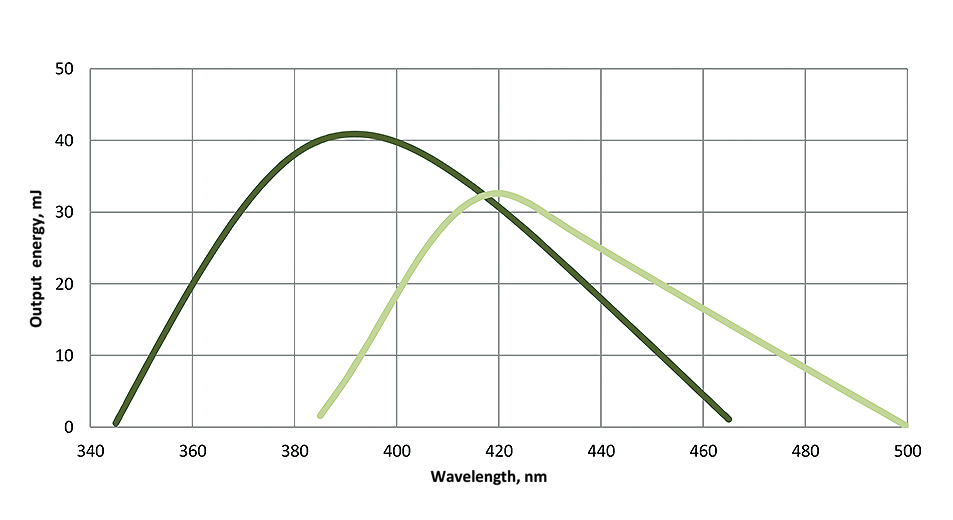

Built-in second harmonic generator allows to promptly (by simple switching) select the IR or VIS tuning range and ensures different harmonics radiation output in one beam or in separate beams

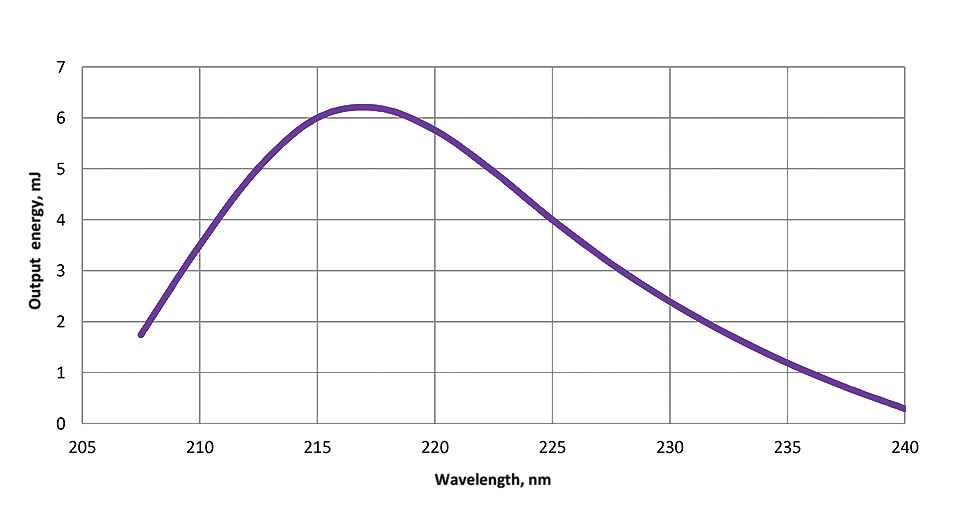

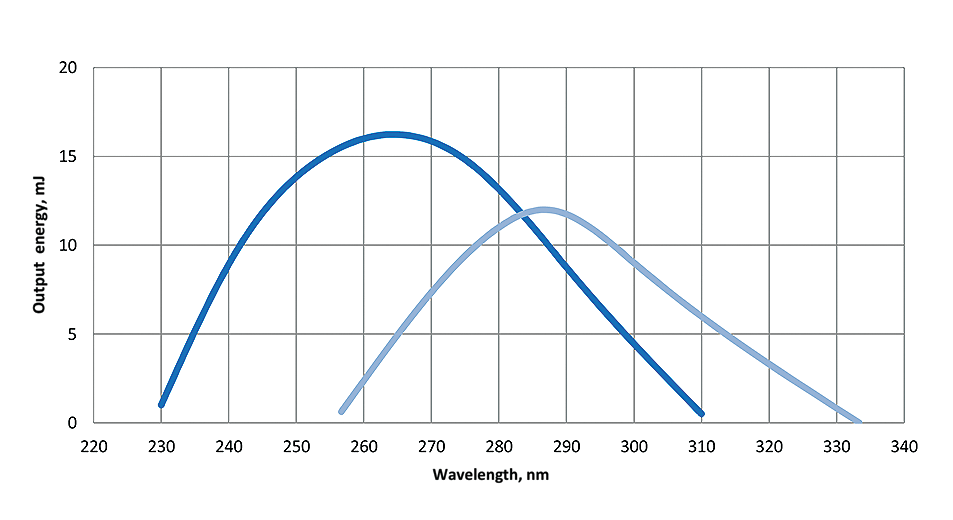

upon your choice. If you need tuneable UV output you always can supplement the LX329 with the THG or FHG modules which will ensure tuning within the range from 210 to 320 nm.

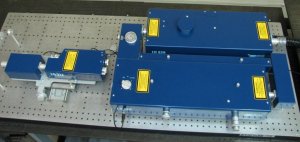

For your convenience the LX329 laser can be supplied together with the LQ series pump lasers the parameters of which are optimised specially for such applications.
