PICOSECOND DPSS ND:YVO4 LASERS

SOLAR LS presents a new family of high-power DPSS lasers generating laser pulses of 7 ps duration – the PX100 series. High peak and average power as well as excellent longterm radiation stability of these lasers make them an ideal tool for a wide variety of applications, from life sciences to materials processing.

• DIODE-PUMPED SOLID-STATE DESIGN

• HERMETICALLY SEALED LASER HEAD

• AIR COOLED

• TURN-KEY OPERATION

• LOW MAINTENANCE COSTS

DESCRIPTION

The PX100 series lasers have an original optical scheme with longitudinal end-pumping and use the advanced SESAM® technology for obtaining the mode-locked regime. These solutions

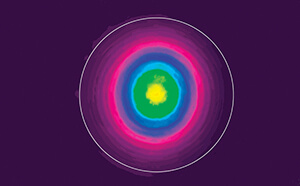

ensure superior TEM00 beam quality and unprecedentedly short warm-up time.

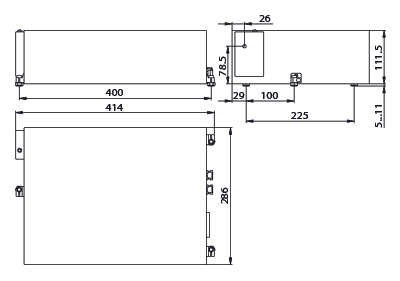

The lasers of PX100 series can be easily integrated into any specialised equipment or complex measurement systems due to compact footprint, air cooling, built-in power meter module and full
RS232/Ethernet interface for PC control. The lasers were developed SOLAR LS presents a new family of high-power DPSS lasers generating laser pulses of 7 ps duration – the PX100 series.
High peak and average power as well as excellent longterm radiation stability of these lasers make them an ideal tool for a wide variety of applications, from life sciences to materials processing.
specially for robust, low-maintenance operation. The cavity and nonlinear crystals of the PX100 series lasers are placed into a sealed rigid housing, thus ensuring reliable 24/7 operation.

In the standard configuration the PX110 laser is supplied with the IR output. However, upon your request it can be supplemented with harmonic generators providing high-efficiency radiation conversion into the VIS and UV region thus expanding the laser’s capabilities for solving tasks in the field of nonlinear optics and laser spectroscopy.
