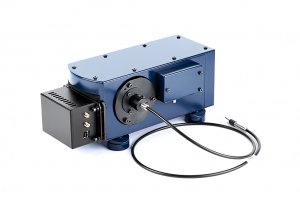

FEATURESS200-MF is a new-generation spectrometer with high spectral and spatial resolution across the entire area of commercially available 2D (array) image sensors.
IDEAL ASTIGMATISM COMPENSATION ACROSS THE ENTIRE FOCAL PLANE;
SYNCHRONOUS SPECTRA IMAGING FROM TWO UP TO DOZENS OPTICAL FIBERS;
INTEGRATED CCD-ARRAY AND CUSTOM SOFTWARE FOR MULTI- CHANNEL OPTICAL SPECTROSCOPY;
EMBEDDED MECHANICAL SHUTTER SYNCHRONIZED WITH THE DETECTOR FOR PROCESSING CONTINUOUS SIGNALS;
PERFECT SYSTEM FOR HYPERSPECTRAL IMAGING.
S200-MF is a new-generation spectrometer with high spectral and spatial resolution across the entire area of commercially available 2D (array) image sensors.

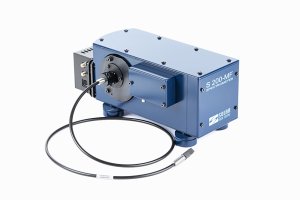

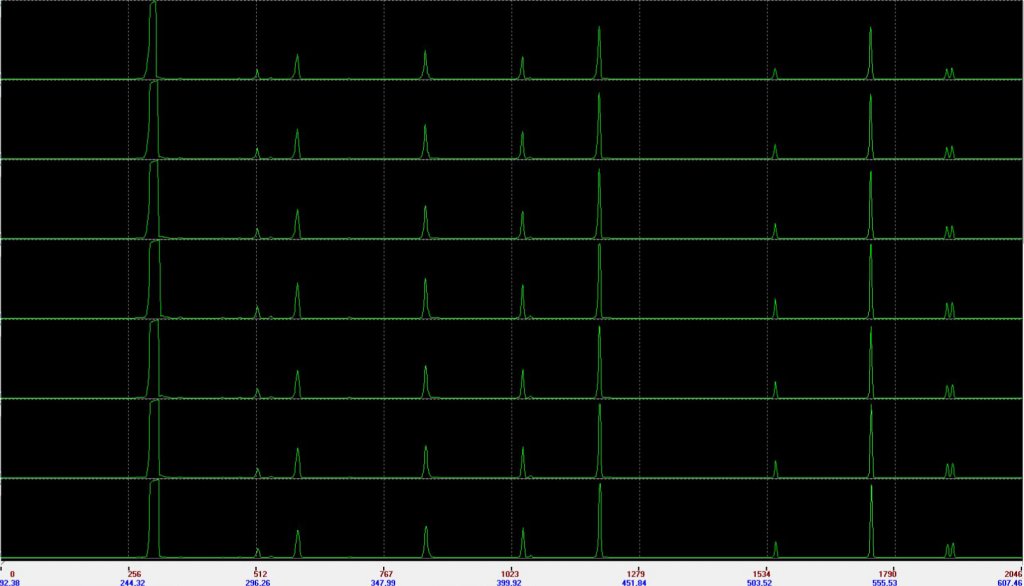

Due to innovative optical bench and specially designed optics with aberration correction the S200-MF spectrometer features complete compensation of astigmatism both in the center of detector’s sensitive area and at its edges. This allows connecting a multi-fiber optical bundle to the entrance slit of the spectrometer and acquiring spectra from several fibers simultaneously. Maximum number of optical fibers in the bundle depends on the height of sensor area and on fiber diameter. When using standard sensors as large as 6 mm tall a number of simultaneously analyzed fibers may reach several dozens.

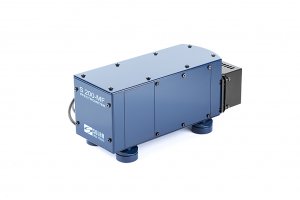

S200-MF has a fixed entrance slit and can operate either with optical fibers, or without them. At direct input of radiation into the spectrometer an image from the analyzed area is projected directly on the entrance slit, and the detector acquires spectral information from this area with high spatial resolution.

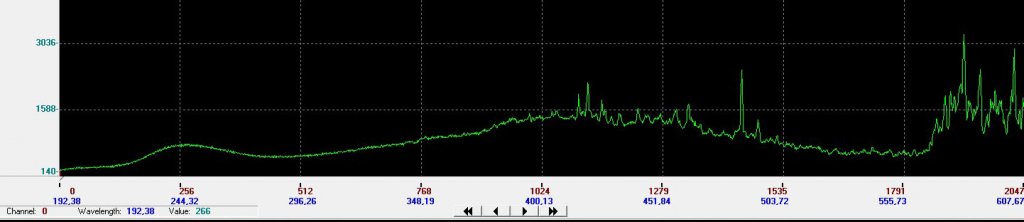

The S200-MF spectrometer ensures perfect flat field and high image quality at any point at the center of the detector and at its edges. Compact size and short-focal-length optical bench of S200-MF allow synchronous imaging of the wide spectral range which is limited only by the detector spectral sensitivity.
