ULTRACOMPACT Q-SWITCHED MICROCHIP LASERS

SOLAR LS offers a family of passive Q-switched microlasers. The QC series lasers are diode-pumped solid-state lasers operating at 1540nm and 1064nm 532nm, 355nm, 266nm.

• COMPACT AND DUSTPROOF DESIGN

• 1540 NM, 1064 NM, 532 NM, 355 NM, 266 NM

• OUTPUT ENERGY UP TO 500 ΜJ

• PEAK POWER UP TO 500 KW

• LIFETIME OF MORE THAN 109 PULSES

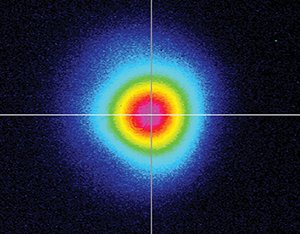

• ТЕМ00

DESCRIPTION

Non-misalignable monolithic cavity guarantees reliability of operation and extreme stability of laser parameters. Pulse duration of ~1 ns ensures high peak power which in combination with ideal beam quality makes these lasers an indispensable instrument for a variety of scientific tasks.

The extremely reliable and robust design of these lasers makes them the best choice for industrial applications.

Compact footprint, external triggering and pumping via an optical fiber not only simplify application of these devices as stand-alone units but also allow to easily integrate them into any equipment.

The lifetime of more than 109 pulses minimises your service costs.
