FX series
FEATURES
The family of the FX series lasers is completely solid-state femtosecond lasers with high average power, exceptional pulse energy and excellent stability.
AIR COOLED
COMPLETELY SOLID-STATE
COMPACT DUSTPROOF DESIGN
≤ 200 FS PULSE DURATION (120 FS IS AVAILABLE)
EXCELLENT STABILITY
VIS AND UV OPTIONS
TURN-KEY OPERATION
DESCRIPTION
The family of the FX series lasers is completely solid-state femtosecond lasers with high average power, exceptional pulse energy and excellent stability.
Yb-doped KYW crystals used in these lasers allow being pumped directly by a diode eliminating the necessity in an intermediary pump laser used in traditional Ti:Sapphire lasers. For this reason the FX series lasers to the full extent combine compactness and reliability of fiber systems with advantages of solid-state technologies.
The FX100 and FX200 air cooled diode-pumped lasers have been developed specially for long-term and stable operation with minimum of service. The lasers are built on the turn-key principle and can be operated by a user not experienced in working with laser equipment.
Unpretentiousness of the FX series lasers is conditioned by the rigid dustproof design with thermal stabilisation of all the critical cavity components. Supplement these features with service intervals of more than 10 000 hours and obtain a device which will be duly appreciated by industrial users.
Excellent beam quality will satisfy the most demanding requirements of scientists performing fine experiments. Thanks to the SESAM® technology you will daily save your time due to self-start of the femtosecond mode immediately after switching on the laser and will be sure in the precision of your experiments thanks to ideal long-term stability of the laser output parameters.
If you need to use the laser you already have in your laboratory for applications requiring VIS or UV femtosecond radiation, it can be supplemented with the SHG (518nm), THG (345nm) or FHG (259nm).
MODEL | FX100 | FX200 | |
Laser material | Yb:KYW | ||
Average output power, W | 1035 nm 1) | 1 | 8 |
518 nm | 0,4 | 4 | |
345 nm | 0,2 | 2 | |
259 nm | 0,1 | 1 | |
Pulse energy, nJ 2) | 15 | 100 | |
Pulse repetition rate, MHz 3) | 70 | ||
Pulsewidth, fs 4) | 200 | ||
Beam quality | TEM00; M2 ≤ 1,5 | ||
Power stability, % | + / — 1 | ||
Dimensions, mm:Laser Head (LxWxH)Power Supply (HxWxD) | 670 x 220 x 155240 x 240 x 110 | 400 x 290 x 130325 x 290 x 135 | |
* Specifications are subject to change without notice
1) The output wavelength is fixed within the range of 1035 ± 10 nm
2) Specified at 1035 nm
3) Other PRR values can be provided upon request
4) Pulsewidth within 120…200 fs is available

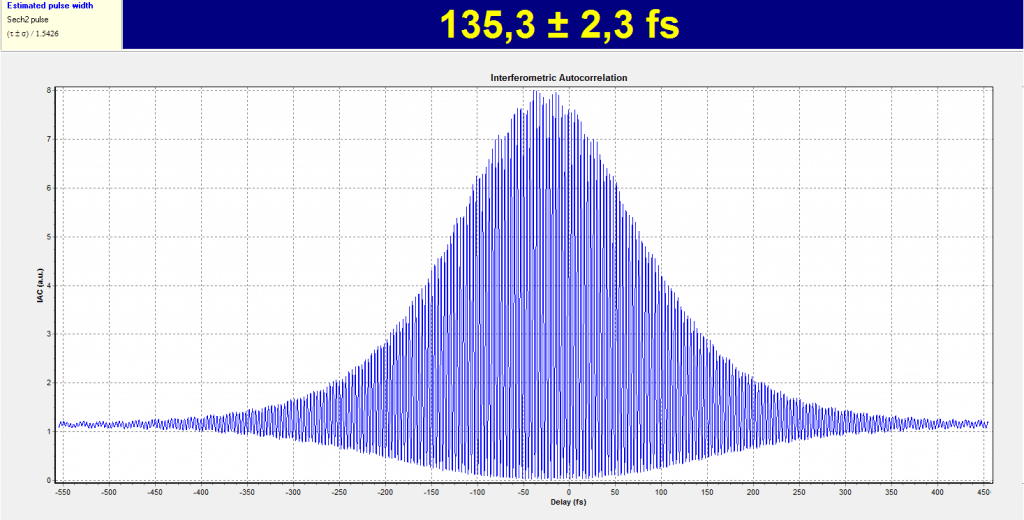

The FX100 laser typical autocorrelation curve
The FX200 laser head outline drawing
HARMONIC GENERATORS

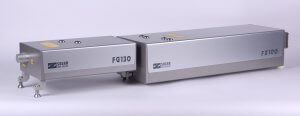

In the standard configuration the FX series lasers does not have built-in harmonic generators. However, upon your request the SHG, THG and FHG can be supplied as a stand-alone modules series FG.

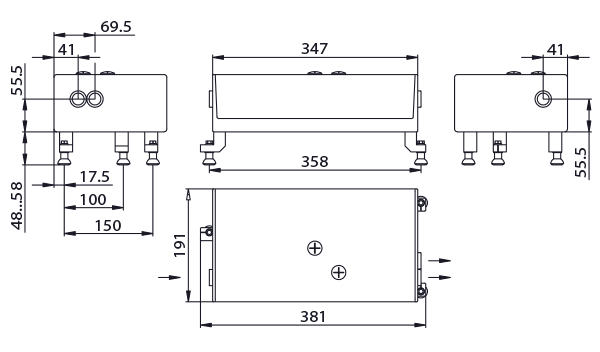

The FG130 harmonic generator outline drawing
Femtosecond spectroscopy
Nonlinear spectroscopy
Nonlinear optics
High harmonics generation
Terahertz generation and detection
Multiphoton microscopy
